Brick

Brick

Brick parameters:

Capacity : 29.8 (kw)
Transmission: Automatic
Excitation frequency :3000 -5000 ( beats / min )
Type: brick machinery
:15 -20 molding cycle (sec )
Vibration frequency :3000-5000 (hz)
Model : QTJ6-15
Alias: brick machine
Main vibration form : Taiwan earthquake
Maximum pressure : 70 (KN)
Purpose : brick used in the production of hollow bricks, unburned
Total power : 29800 (w)
Total Weight : 8.8 (t)
Dimensions : 700 * 210 * 290 (cm)

Brick hollow brick production | unburned process :

Brick hollow brick production | unburned process simply summarized as follows : Raw materials science ratio - add water and stir - high voltage shock molding - short drying - the finished product .

Brick Category:

Vacuum brick and brick machine brick divided into two categories . The former is the use to be made of adobe soil , need to do a lot of soil , more waste of resources , which is the utilization of waste coal gangue , pages rock , stone powder , fly ash, slag , slag, gravel , sand and other system into , but not through the firing process , more environmentally friendly and save resources, to get the country to promote .

Brick technology security :

1, the brick work , must be installed on all shields and ground cover.
2 , check the electrical part of the ground wire to prevent leakage, short circuit and so on.
3, the motor direction is prohibited to stand on , so to avoid the car .
4 , there is not normally found in brick , should be immediately stopped and checked excluded.
5 , in the brick did not start , allowed to start feeding mechanism , so as to avoid overload , loss of billet mechanical phenomenon occurs .

Please visit Search : brick, brick machine, block making machine, insulation bricks brick machine, brick machine environment , fly ash brick making machine , small brick machine , automatic hollow brick

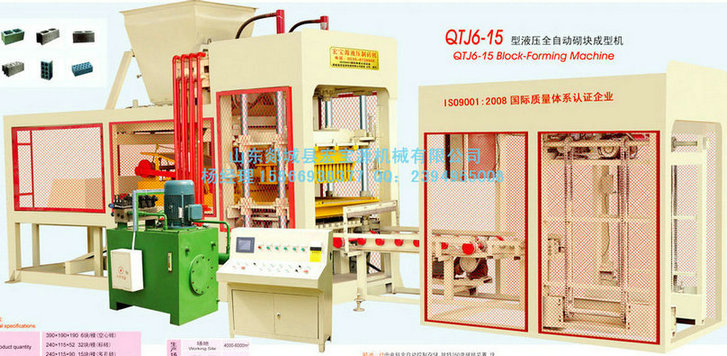

Brick Photo Gallery :
